Clip Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

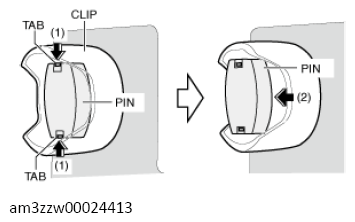

- Pull out (2) the pin while pressing the tabs in the directions of the arrows (1) shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|
- Insert a flathead screwdriver into the locations shown in the illustration and detach the tabs from the body panel.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the clip.
