Rear Floor Covering

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    4. Front seat (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    5. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    6. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    7. Shift lever knob (MTX)
    8. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    9. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    10. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    11. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    12. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    13. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    14. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    15. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    16. 360° view monitor control module (with 360° view monitor system) (See 360DEGREES VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION (US) )
    17. Parking assist unit (optical) (with parking assist system) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION (US) .)
    18. Audio amplifier (See AUDIO AMPLIFIER REMOVAL/INSTALLATION (US) .)
    19. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  3. Remove the nuts.

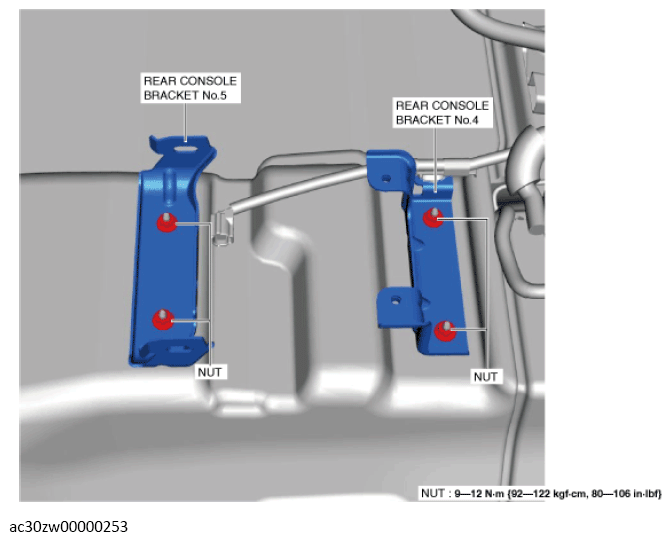

    Fig 1: Rear Console Bracket No. 4, Rear Console Bracket No. 5 And Nuts With Torque Specification
    G13560694Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear console bracket No. 4.
  5. Remove the rear console bracket No. 5.
  6. Remove the fasteners.

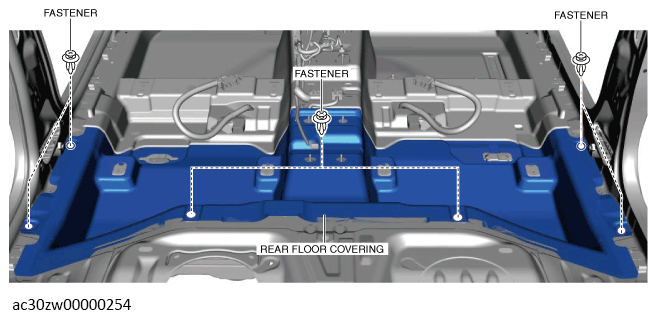

    G13560695Courtesy of MAZDA MOTORS CORP.
  7. Take the out from the door opening.
  8. Install in the reverse order of removal.
  9. Perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
