Audio Amplifier Removal/Installation (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint.
  2. Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)
  3. Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  4. Perform the following procedure:
    1. Switch the ignition off.
    2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  5. Remove the front seat (RH). (See FRONT SEAT REMOVAL/INSTALLATION (US) .)

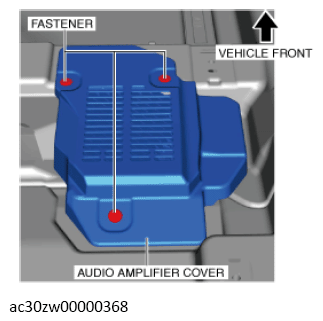

  6. Remove the fastener.
    G13561033Courtesy of MAZDA MOTORS CORP.
  7. Remove the audio amplifier cover.
  8. Remove the bolts.

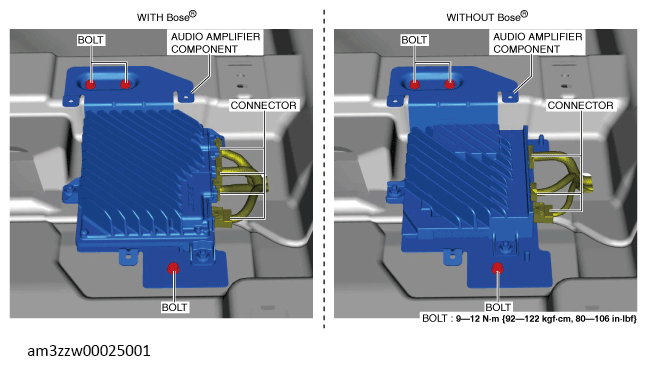

    Fig 1: Audio Amplifier Component, Connectors And Bolts With Torque Specification
    G13561034Courtesy of MAZDA MOTORS CORP.
  9. Disconnect the connectors.
  10. Remove the audio amplifier component.
  11. When removing the bracket, perform the following procedure:
    1. Remove the nuts.

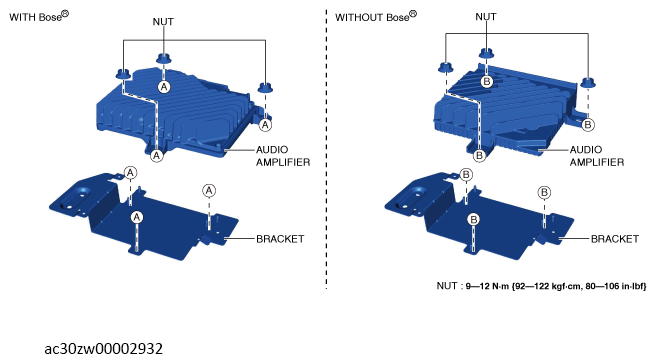

      Fig 2: Audio Amplifier, Bracket And Nuts With Torque Specification
      G13561035Courtesy of MAZDA MOTORS CORP.
    2. Remove the bracket.
  12. Install in the reverse order of removal.
