LH (ATX)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  4. Remove the gusset.

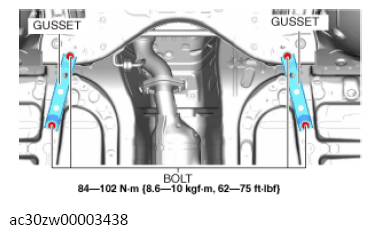

    Fig 1: Gusset Bolts With Torque Specification (LH, ATX)
    G13557808Courtesy of MAZDA MOTORS CORP.
  5. Remove the tunnel cover. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)
  6. Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)
  7. Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION .)

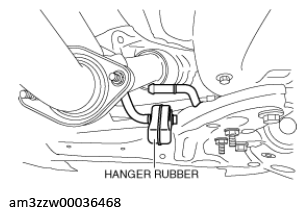

  8. Disconnect the hanger rubber from the front crossmember and set it aside.
    G13175642Courtesy of MAZDA MOTORS CORP.
  9. Remove the joint cover. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION (US) .)
  10. Disconnect the intermediate shaft (lower side) from the steering gear and linkage. (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION (US) .)
  11. Disconnect the front lower arm ball joint from the steering knuckle. (See FRONT LOWER ARM BALL JOINT INSTALLATION NOTE .)

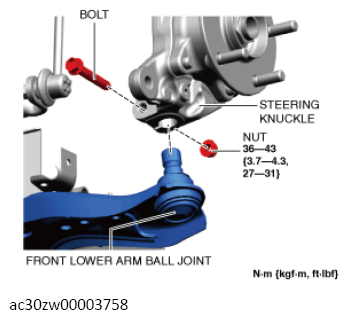

    Fig 2: Front Lower Arm Ball Joint, Steering Knuckle, Nut And Bolt With Torque Specification (LH, ATX)
    G13557825Courtesy of MAZDA MOTORS CORP.
  12. Remove the No. 1 engine mount rubber installation bolts.

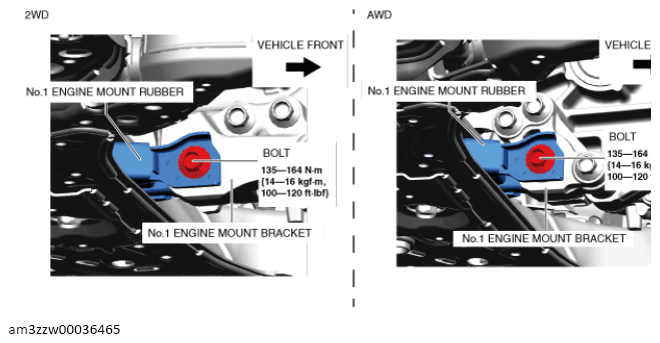

    Fig 3: No. 1 Engine Mount Rubber And Bracket Bolts With Torque Specification (LH, ATX)
    G13175644Courtesy of MAZDA MOTORS CORP.

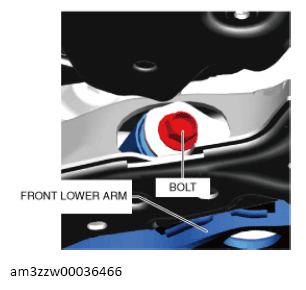

  13. Lower the front crossmember assembly approx. 30 mm to the position where the front lower arm installation bolt can be removed.
    G13175645Courtesy of MAZDA MOTORS CORP.
  14. Remove in the order shown in the illustration.
  15. Install in the reverse order of removal. (See SUSPENSION LINKS INSTALLATION NOTE .)
  16. If the front lower arm is replaced, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT (US) .)

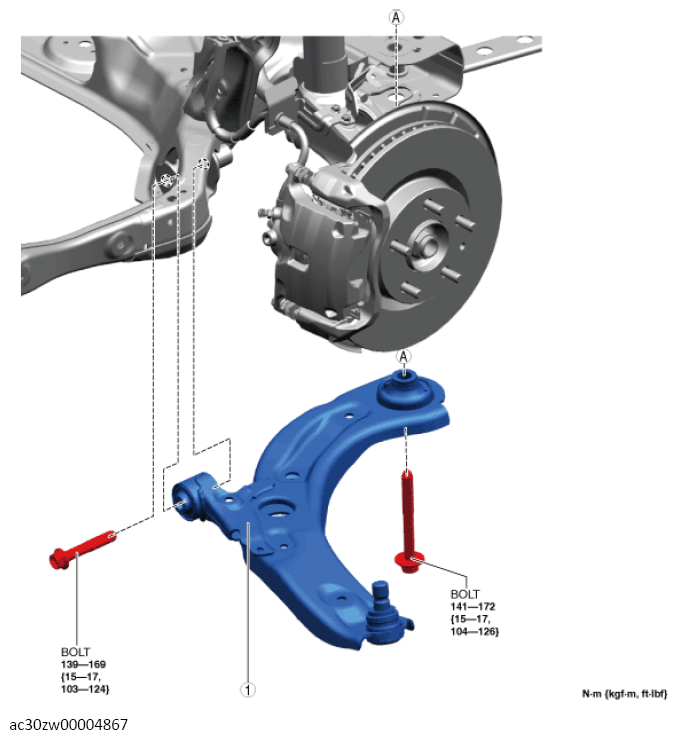

Fig 4: Front Lower Arm Components With Torque Specification (LH, ATX)
G13557828Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Front lower arm
