Step 2

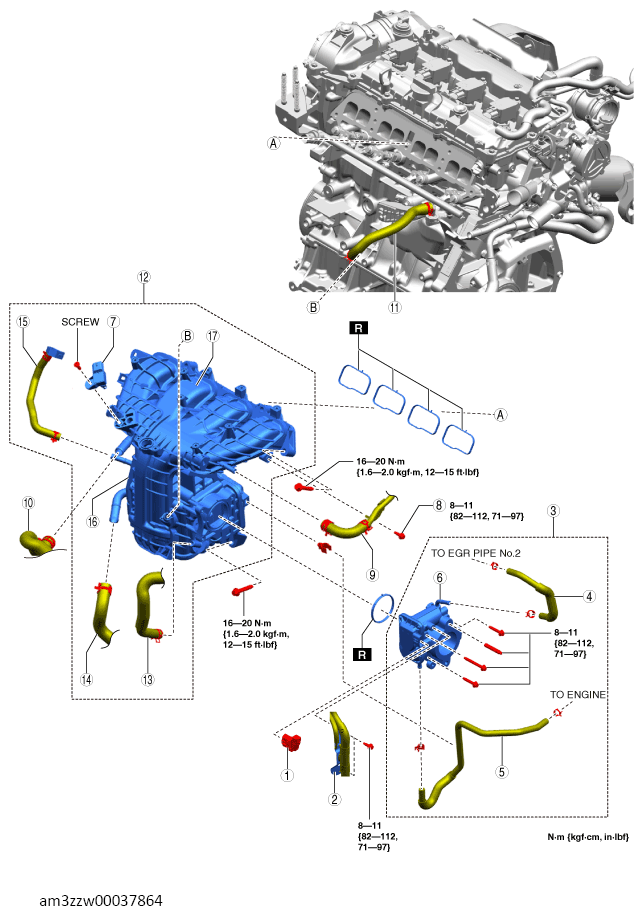

Fig 1: Intake-Air System Components With Torque Specification (Step 2)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Throttle body connector
2	Wiring harness bracket
3	Throttle body component (See THROTTLE BODY COMPONENT REMOVAL NOTE .) (See THROTTLE BODY COMPONENT INSTALLATION NOTE .)
4	Water hose No. 1 (See WATER HOSE NO. 1, WATER HOSE NO. 2 INSTALLATION NOTE .)
5	Water hose No. 2 (See WATER HOSE NO. 1, WATER HOSE NO. 2 INSTALLATION NOTE .)
6	Throttle body
7	MAP sensor/IAT sensor No. 2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
8	Vacuum pipe bracket bolt
9	Vacuum hose No. 1
10	Water hose No. 3
11	PCV hose (See PCV Hose Removal Note .) (See PCV Hose Installation Note .)
12	Intake manifold component (See INTAKE MANIFOLD COMPONENT REMOVAL NOTE .) (See INTAKE MANIFOLD COMPONENT INSTALLATION NOTE .)
13	Vacuum hose No. 2
14	Water hose No. 4
15	Water hose No. 5
16	Water-cooled charge air cooler (See WATER-COOLED CHARGE AIR COOLER REMOVAL/INSTALLATION .)
17	Intake manifold
