Water Hose No. 1, Water Hose No. 2 Installation Note

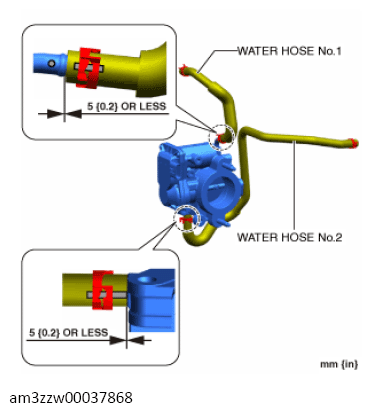

Connect the water hose No. 1 and water hose No. 2 shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
