Water Hose: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the PCM component. (See PCM REMOVAL/INSTALLATION .)
- Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

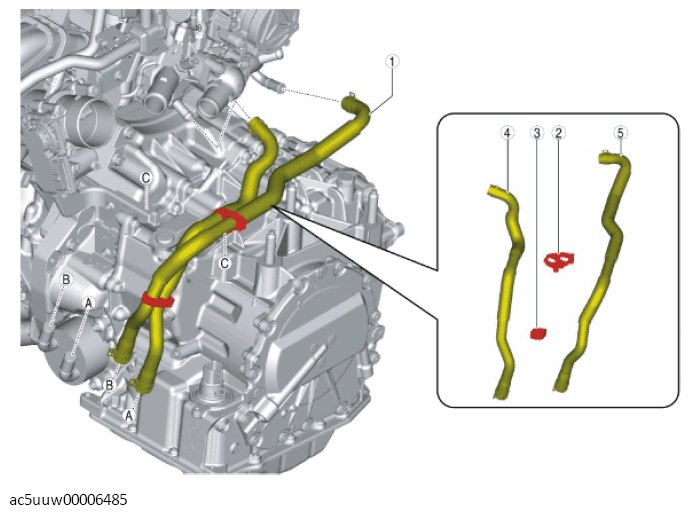

COMPONENT DESCRIPTION
| 1 | Water hose component (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .) (See Water Hose No. 1 (outlet case side) Installation Note .) (See Water hose No. 2 (bypass pipe side) installation note .) |
| 2 | Hose clip No. 1 |
| 3 | Hose clip No. 2 |
| 4 | Water hose No. 1 (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .) (See Water Hose No. 1 (outlet case side) Installation Note .) |
| 5 | Water hose No. 2 (See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .) (See Water hose No. 2 (bypass pipe side) installation note .) |
