Water hose No. 2 (bypass pipe side) installation note

Install the water hose No. 2 to the bypass pipe as shown in the figure with the hose clamp expanded.
NOTE:
- A new water hose No. 2 and hose clamp are attached.

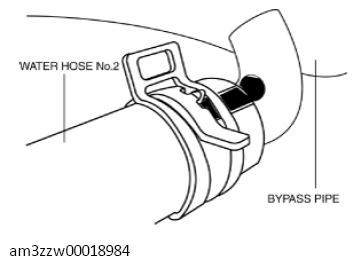

Fig 1: Installing Water Hose No. 2 To Bypass Pipe
Courtesy of MAZDA MOTORS CORP.

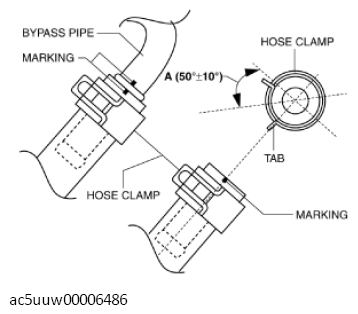

The hose clamp installation direction is within range A shown in the figure.

Fig 2: Hose Clamp Installation Direction With Range A
Courtesy of MAZDA MOTORS CORP.
Verify that the hose clamp does not interfere with any other components.
