Water hose No. 1 (outlet case side) Installation Note

Install the water hose No. 1 to the outlet case as shown in the figure with the hose clamp expanded.
NOTE:
- A new water hose No. 1 and hose clamp are attached.

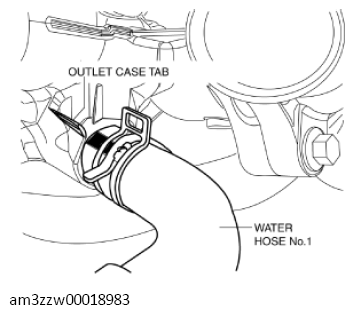

Fig 1: Installing Water Hose No. 1 To Outlet Case
Courtesy of MAZDA MOTORS CORP.
Install the hose clamp so that center A of the hose clamp tab is within the range shown in the figure.

Fig 2: Installing Hose Clamp Center A Of Hose Clamp Tab With Range
Courtesy of MAZDA MOTORS CORP.
- Verify that the installation angle of the hose clamp is within the range shown in the figure.
Verify that the hose clamp does not interfere with any other components.
