Front Turn Light Short Cord Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
Disconnect the connector.

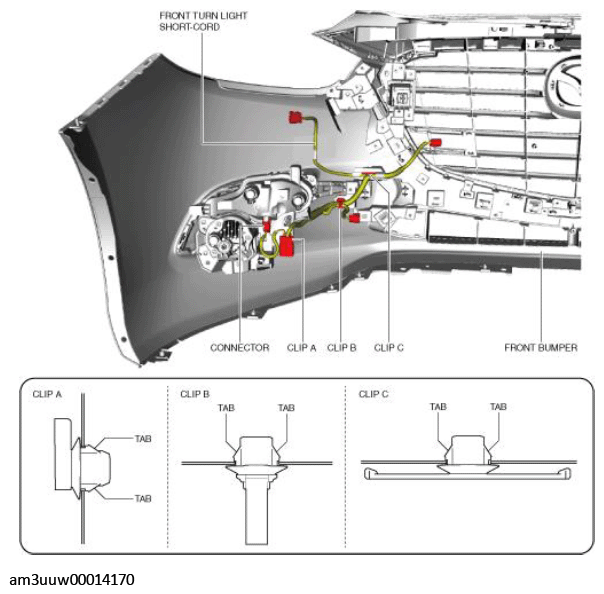

Fig 1: Disconnecting Front Turn Light Short Cord Connector
Courtesy of MAZDA MOTORS CORP.
Remove the clips.
Remove the front turn light short-cord.
Install in the reverse order of removal.
