Front Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    2. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    3. Front bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION .)
    4. Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
    5. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
    6. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
  3. Remove in the order shown in the figure.

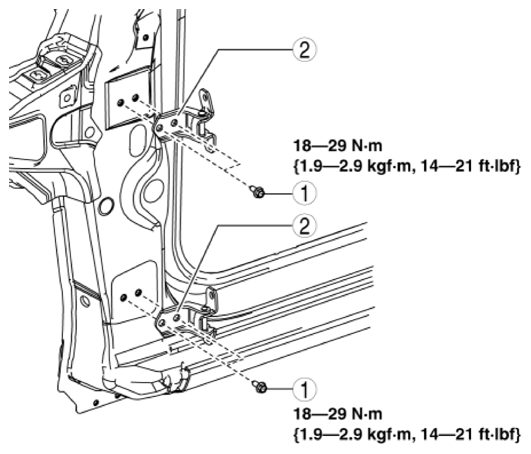

    Fig 1: Identifying Front Door Hinge And Bolts With Torque Specification
    G10938356Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bolt
    2 Front door hinge
  4. Install in the reverse order of removal.
