Door And Liftgate Location Index
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

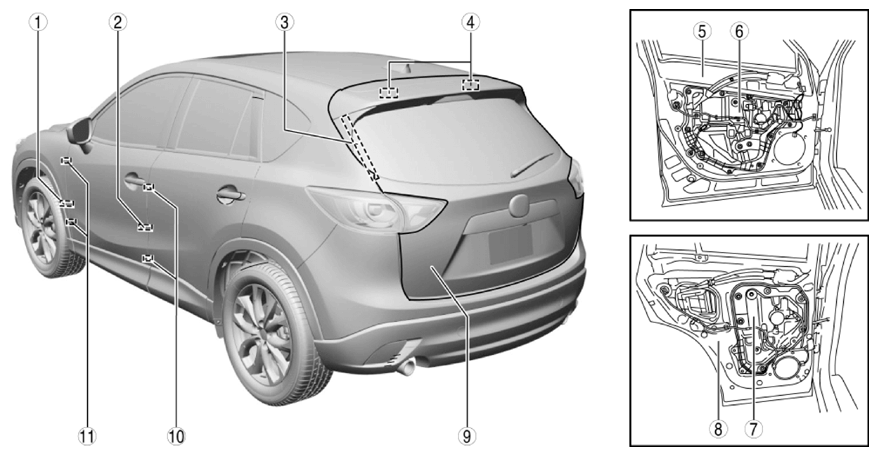

COMPONENT DESCRIPTION
| 1 | Front door checker (See FRONT DOOR CHECKER REMOVAL/INSTALLATION .) |
| 2 | Rear door checker (See REAR DOOR CHECKER REMOVAL/INSTALLATION .) |
| 3 | Stay damper (See STAY DAMPER DISPOSAL .) |
| 4 | Liftgate hinge (See LIFTGATE HINGE REMOVAL/INSTALLATION .) |
| 5 | Front door (See FRONT DOOR REMOVAL/INSTALLATION .) (See DOOR ADJUSTMENT .) |
| 6 | Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .) |
| 7 | Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION .) |
| 8 | Rear door (See REAR DOOR REMOVAL/INSTALLATION .) (See DOOR ADJUSTMENT .) |
| 9 | Liftgate (See LIFTGATE REMOVAL/INSTALLATION .) (See LIFTGATE ADJUSTMENT .) |
| 10 | Rear door hinge (See REAR DOOR HINGE REMOVAL/INSTALLATION .) |
