Rear Door Checker Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the rear door glass.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  5. Remove bolt.

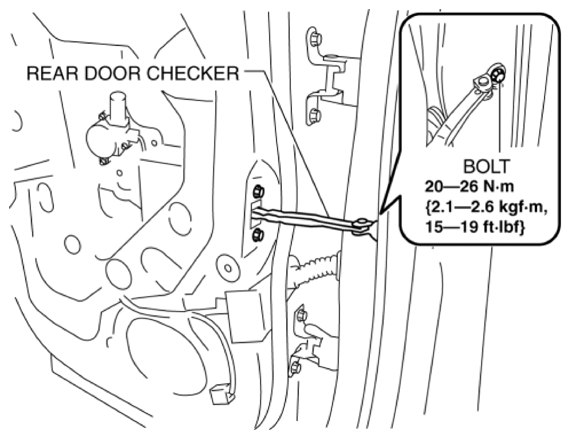

    Fig 1: Identifying Rear Door Checker And Bolt With Torque Specification
    G10938363Courtesy of MAZDA MOTORS CORP.
  6. Remove nuts.

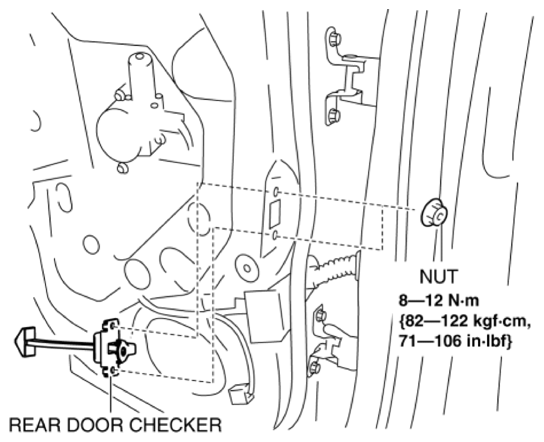

    Fig 2: Identifying Rear Door Checker And Nut With Torque Specification
    G10938364Courtesy of MAZDA MOTORS CORP.
  7. Pull out the rear door checker from the rear speaker installation hole.
  8. Install in the reverse order of removal.
