Rear Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

Remove the following parts:

Rear door (See REAR DOOR REMOVAL/INSTALLATION .)
Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)

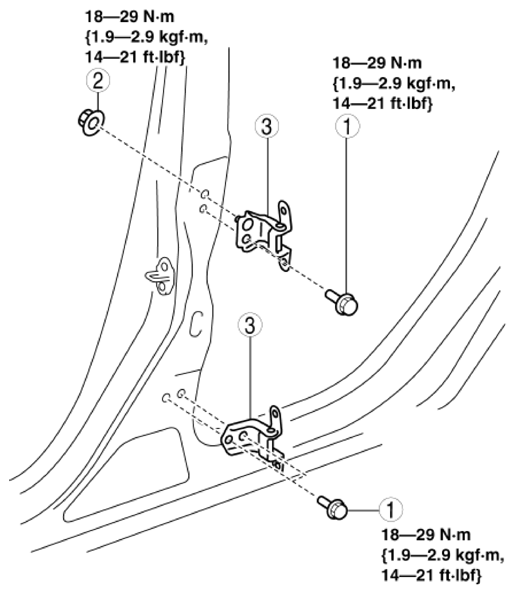

Fig 1: Identifying Rear Door Hinge, Bolt And Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Nut
3	Rear door hinge

Remove in the order shown in the figure.
Install in the reverse order of removal.
