Rear Drive Shaft Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not allow a magnetized tool such as a magnetized screwdriver to come into contact with the ABS sensor rotor. If the ABS sensor rotor becomes magnetized it will be unable to read the ABS wheel speed sensor waveform correctly resulting in an ABS system malfunction to be determined and the inability to perform ABS control. If a magnetized object comes into contact with the ABS sensor rotor, it will be necessary to newly replace the rear drive shaft (ABS sensor rotor).

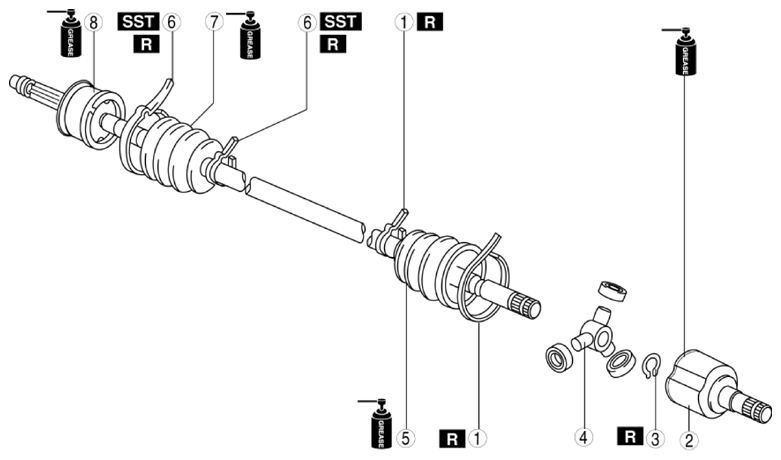

- Disassemble in the order shown in the figure.
- Assemble in the reverse order of removal.
COMPONENT DESCRIPTION
| 1 | Boot band (differential side) (See Boot Band (Differential Side) Disassembly Note .) (See Boot Band (Differential Side) Assembly Note .) |
| 2 | Outer ring (See Outer Ring Disassembly Note .) (See Outer Ring Assembly Note .) |
| 3 | Snap ring (See Snap Ring, Tripod Joint Disassembly Note .) (See Tripod Joint, Snap Ring Assembly Note .) |
| 4 | Tripod joint (See Snap Ring, Tripod Joint Disassembly Note .) (See Tripod Joint, Snap Ring Assembly Note .) |
| 5 | Boot (differential side) (See Boot (Differential Side) Disassembly Note .) (See Boot (Differential Side) Assembly Note .) |
| 6 | Boot band (wheel side) (See Boot Band (Wheel Side) Disassembly Note .) (See Boot Band (Wheel Side) Assembly Note .) |
| 7 | Boot (wheel side) (See Boot (Wheel Side) Disassembly Note .) (See Boot (Wheel Side) Assembly Note .) |
| 8 | Shaft and ball joint component |
