Outer Ring Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Place alignment marks on the shaft and outer ring.
CAUTION:
- To prevent part damage, do not use a punch or similar tool to place alignment marks. Use paint.
Fig 1: Positioning Alignment Marks On Shaft And Outer Ring
Courtesy of MAZDA MOTORS CORP.
Secure the shaft in a vise.

Fig 2: Securing Shaft In Vise
Courtesy of MAZDA MOTORS CORP.
Lightly tap the outer ring evenly using a hammer and urethane bar or equivalent, and remove the outer ring from the shaft.
CAUTION:
- When tapping the outer ring lightly using a hammer and urethane bar or equivalent, be careful not to scratch the roller area so as to prevent damage to the part.

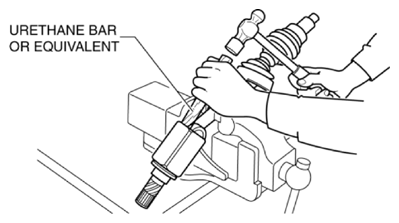

Fig 3: Tapping Outer Ring Using Hammer
Courtesy of MAZDA MOTORS CORP.
Wipe off grease on the outer ring using a clean rag.
