Boot Band (Differential Side) Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the lock clip up using a screwdriver.

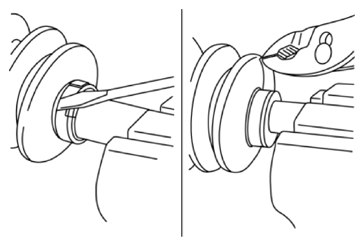

    Fig 1: Pressing Boot Band Lock Clip Up Using Screwdriver
    G10936664Courtesy of MAZDA MOTORS CORP.
  2. Remove the boot band using pliers.
