Except U.S.A. And CANADA: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

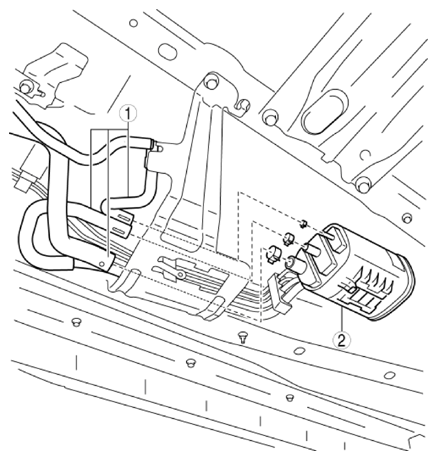

Fig 1: Evaporative Hose And Charcoal Canister

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporative hose (See Evaporative hose installation note .)
2	Charcoal canister (See Charcoal canister removal note .)

Install in the reverse order of removal.
