Charcoal canister removal note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

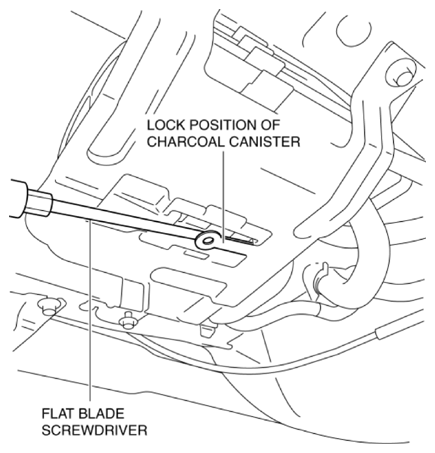

  1. Release the lock as shown in the figure.
    Fig 1: Removing Lock
    G10916420Courtesy of MAZDA MOTORS CORP.
  2. Remove the charcoal canister.
