Evaporative hose installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the evaporative hose as shown in the figure.

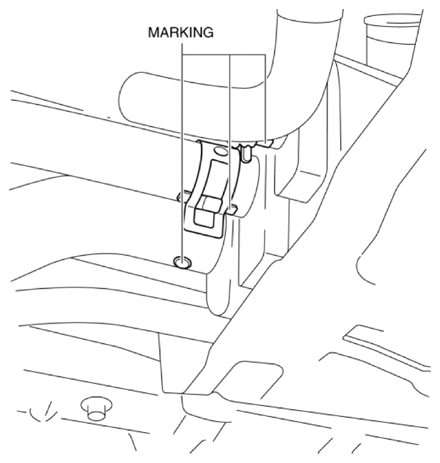

Fig 1: Identifying Mark On Evaporative Hose
G10916421Courtesy of MAZDA MOTORS CORP.
