Seat Belt Location Index
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

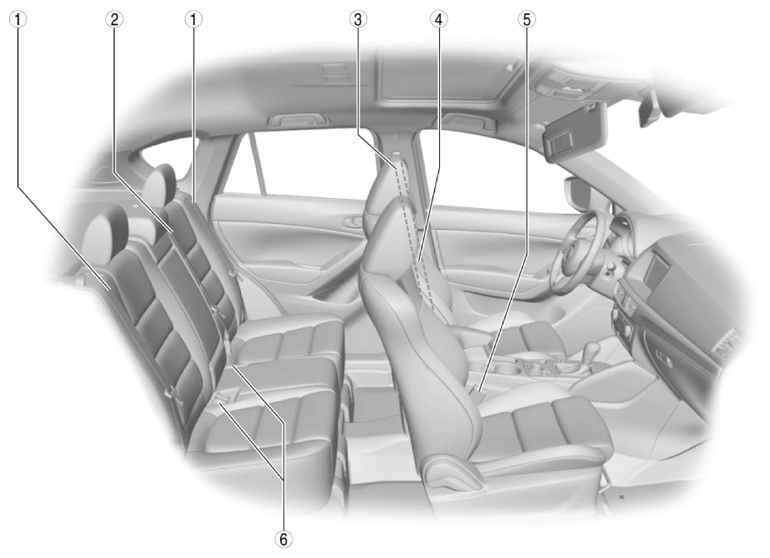

COMPONENT DESCRIPTION
| 1 | Rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .) |
| 2 | Rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION . I |
| 3 | Adjuster anchor (See ADJUSTER ANCHOR REMOVAL/INSTALLATION .) |
| 4 | Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .) |
| 5 | Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION .) |
| 6 | Rear buckle (See REAR BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION .) |
