Rear Seat Belt Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The ELR (emergency locking retractor) has a spring that will unwind if the retractor cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
  1. Disconnect the negative battery cable and wait for 1 min or more.  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    2. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    5. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts.

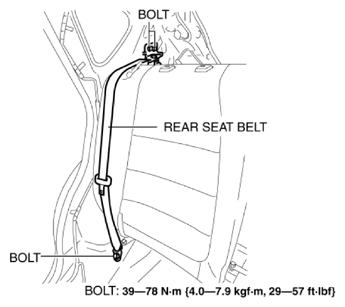

    Fig 1: Identifying Rear Seat Belt And Bolts With Torque Specification
    G10937998Courtesy of MAZDA MOTORS CORP.
  4. Remove the tab as shown in the figure.

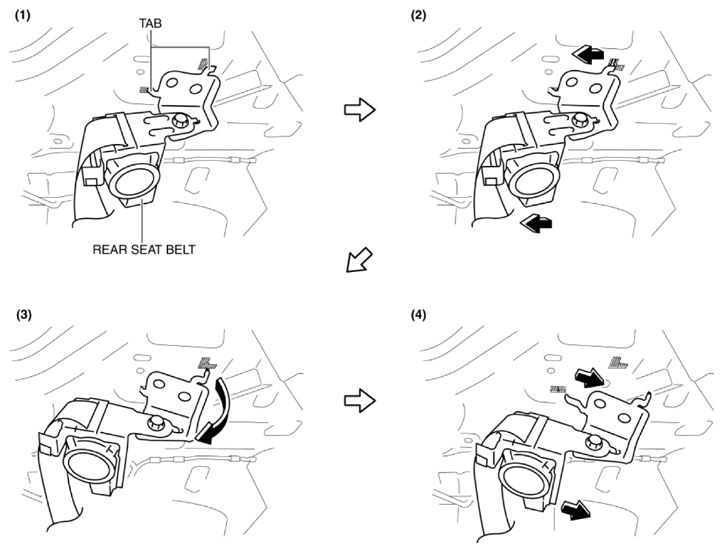

    Fig 2: Removing Rear Seat Belt Tab
    G10937999Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear seat belt.
  6. Install in the reverse order of removal.
