Front Buckle Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Disconnect the front buckle connector.

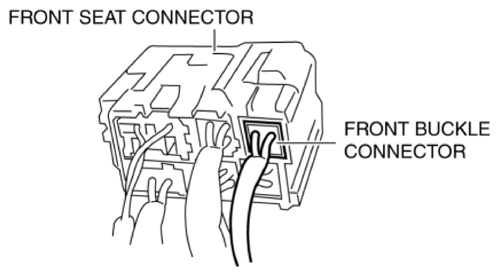

Fig 1: Identifying Front Buckle Connector And Front Seat Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.

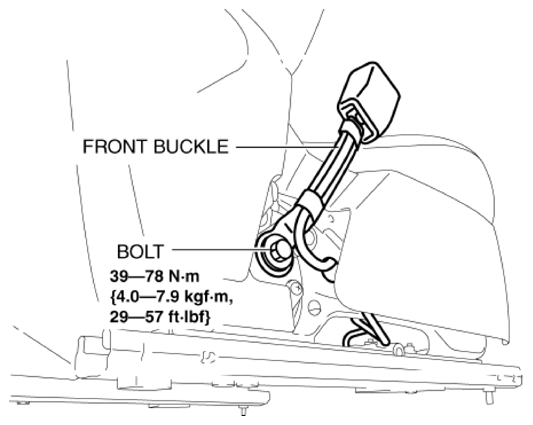

Fig 2: Identifying Front Buckle And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the front buckle.
Install in the reverse order of removal.
