Smart Brake Support (SBS) Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

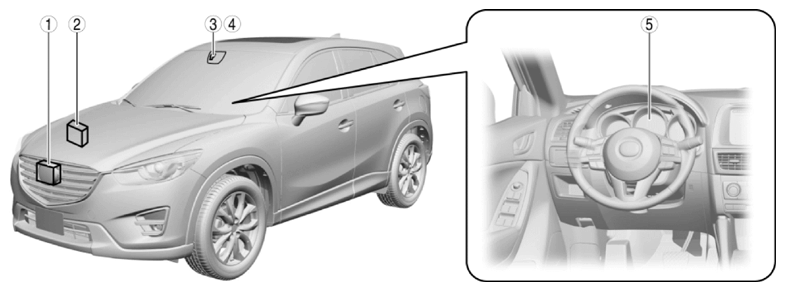

Fig 1: Smart Brake Support (SBS) Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Radar unit (See RADAR UNIT REMOVAL/INSTALLATION .) (See RADAR UNIT DISASSEMBLY/ASSEMBLY .) (See RADAR UNIT AIMING .) (See RADAR UNIT INSPECTION .)
2	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .) (See DSC HU/CM INSPECTION .)
3	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD INSPECTION .) (See FORWARD SENSING CAMERA (FSC) AIMING .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA) .)
4	Laser sensor (See LASER SENSOR REMOVAL/INSTALLATION .) (See LASER SENSOR INSPECTION .)
5	INSTRUMENT CLUSTER (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER OPERATION RECORD .) (See INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE .)
