Forward Sensing Camera (FSC) Short-Cord Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Cover (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
2. Auto-dimming mirror (See AUTO-DIMMING MIRROR REMOVAL/INSTALLATION .)
3. FSC short-cord (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION .)
Verify that the continuity between the FSC short-cord terminals is as indicated in the chart.

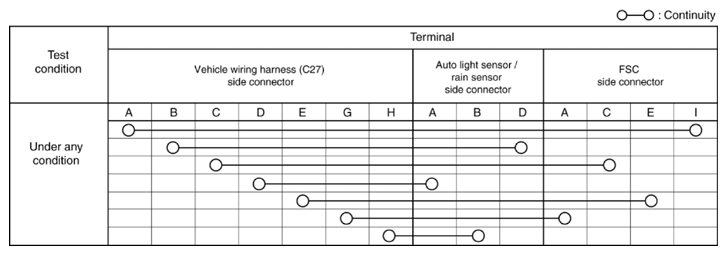

Fig 1: FSC Short-Cord Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

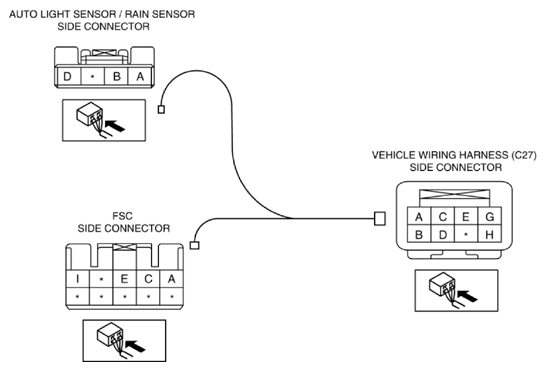

Fig 2: Inspecting Continuity Between FSC Short-Cord Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the FSC short-cord.
