Forward Sensing Camera (FSC) Cover Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the cover. (See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION .)
Remove the forward sensing camera (FSC). (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)

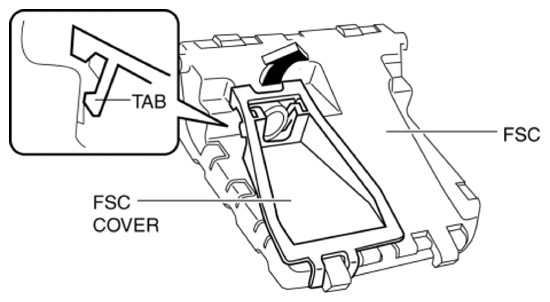

Pull the FSC cover in the direction of the arrow shown in the figure and detach tab of FSC cover.

Fig 1: Pulling FSC Cover
Courtesy of MAZDA MOTORS CORP.

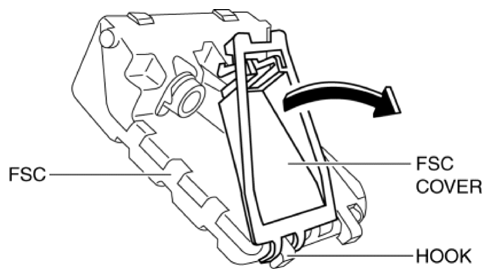

Rotate the FSC cover in the direction of the arrow shown in the figure, remove the FSC cover from FSC hook, and remove the FSC cover.

Fig 2: Rotating FSC Cover
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
