Windshield Washer Hose Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
Disconnect the windshield washer hose A from the washer motor.

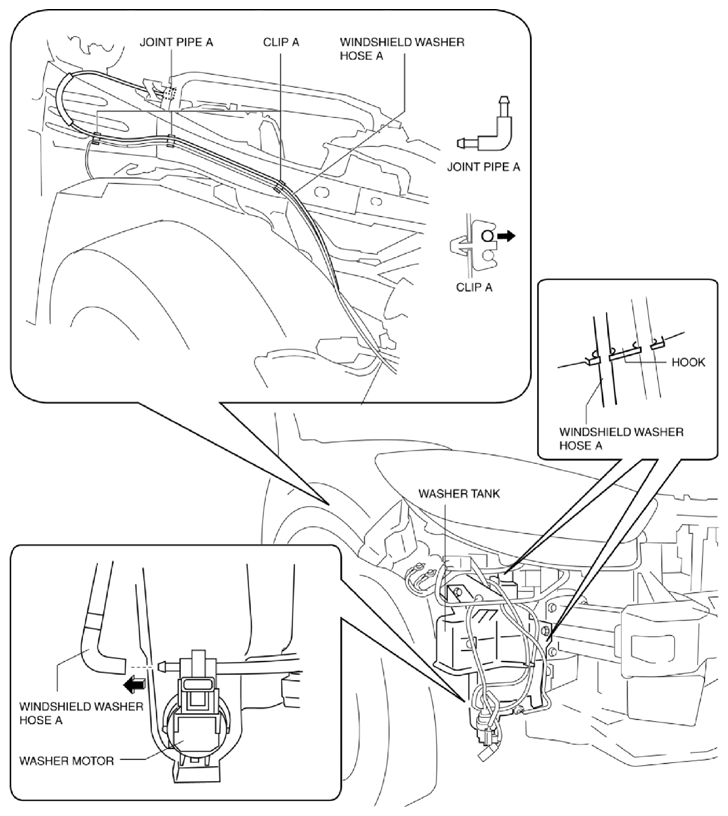

Fig 1: Disconnecting Windshield Washer Hose A From Washer Motor
Courtesy of MAZDA MOTORS CORP.
Remove the windshield washer hose A from the washer tank hook.
Remove the windshield washer hose A from clips A.
Disconnect the windshield washer hose A from the joint pipe A and remove it.
Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
Disconnect the windshield washer hose B from the joint pipe A.

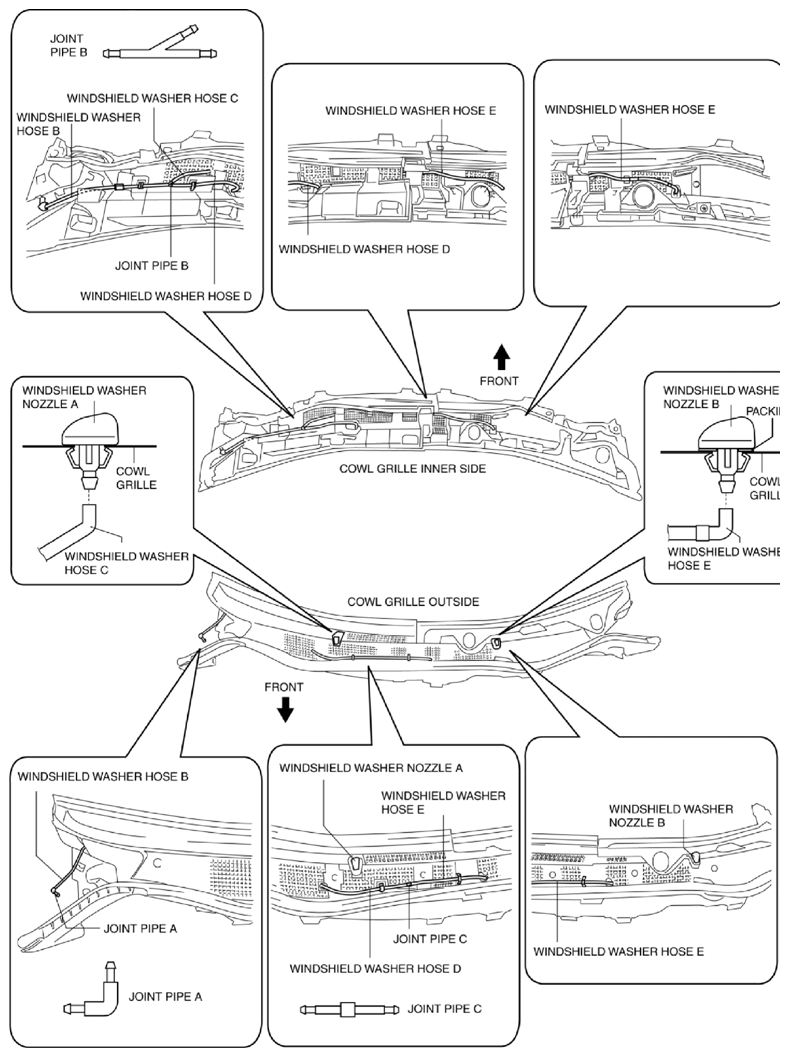

Fig 2: Disconnecting Windshield Washer Hose B From Joint Pipe A
Courtesy of MAZDA MOTORS CORP.
Disconnect the windshield washer hose B from the joint pipe B and remove it.
Disconnect the windshield washer hose C from the windshield washer nozzle A.
Disconnect the windshield washer hose C from the joint pipe B and remove it.
Disconnect the windshield washer hose D from the joint pipe B.
Disconnect the windshield washer hose D from the joint pipe C and remove it.
Disconnect the windshield washer hose E from the windshield washer nozzle B.
Disconnect the windshield washer hose E from the joint pipe C and remove it.
Install in the reverse order of removal.
