No. 1 Engine Mount (2WD): Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

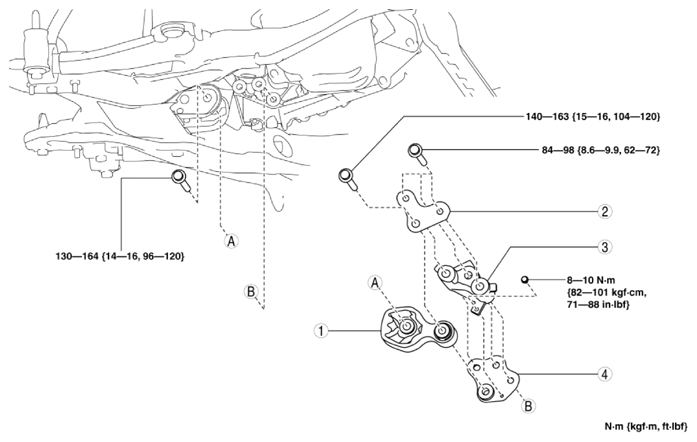

Fig 1: Engine Mount Components With Torque Specification (2WD)
G10916083Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 No. 1 engine mount rubber
(See No. 1 engine mount rubber removal note (2WD) .)
(See No. 1 engine mount installation note (2WD) .)
2 Bracket plate (No. 1)
(See No. 1 engine mount installation note (2WD) .)
3 No. 1 engine mount bracket
(See No. 1 engine mount installation note (2WD) .)
4 Bracket plate (No. 2)
(See No. 1 engine mount installation note (2WD) .)
