No. 1 engine mount installation note (2WD)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the No. 1 engine mount bracket, plate (No. 1), and plate (No. 2) and temporarily tighten the installation bolts.
Tighten the bolt shown in the figure.

Fig 1: Installing No. 1 Engine Mount Bracket And Bolt
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
Install the No. 1 engine mount rubber and temporarily tighten the installation bolts.
Tighten the No. 1 engine mount bracket, plate (No. 1) and plate (No. 2) installation bolts in the order shown in the figure.

Fig 2: No. 1 Engine Mount Bracket Plate Installation Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 84-98 N.m {8.6-9.9 kgf.m, 62-72 ft.lbf}
Tighten the No. 1 engine mount rubber installation bolts.

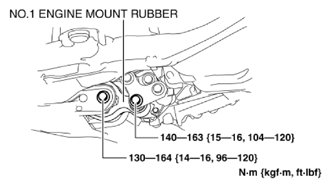

Fig 3: Identifying No. 1 Engine Mount Rubber Installation Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.
