Clutch Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

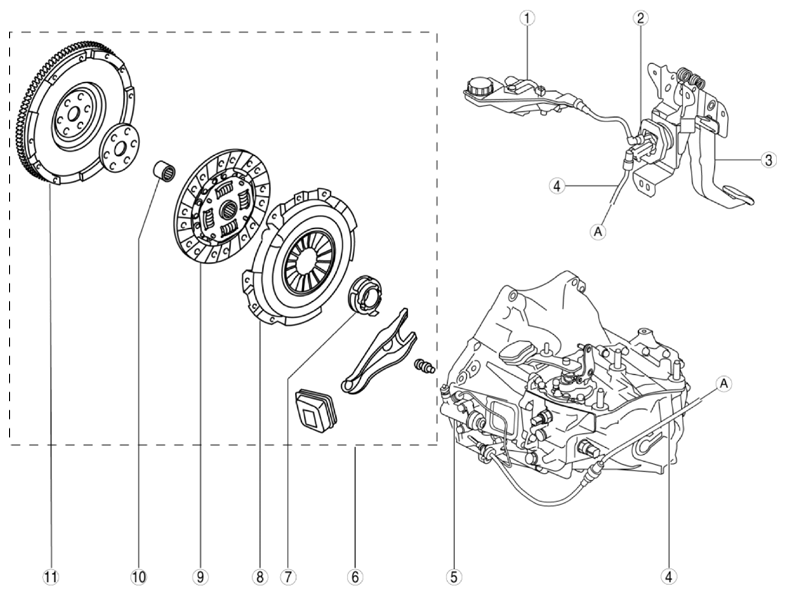

Fig 1: Clutch Components

G10936969

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Reserve tank (See CLUTCH FLUID INSPECTION .) (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING .)
2	Clutch master cylinder (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION .)
3	Clutch pedal (See CLUTCH PEDAL INSPECTION .) (See CLUTCH PEDAL REMOVAL/INSTALLATION .) (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .) (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION .)
4	Clutch pipe and hose (See CLUTCH FLUID LEAKAGE INSPECTION .) (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
5	Clutch release cylinder (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION .)
6	Clutch unit (See CLUTCH UNIT REMOVAL/INSTALLATION .)
7	Clutch release collar (See CLUTCH UNIT REMOVAL/INSTALLATION .) (See CLUTCH RELEASE COLLAR INSPECTION .)
8	Clutch cover (See CLUTCH UNIT REMOVAL/INSTALLATION .) (See CLUTCH COVER INSPECTION .)
9	Clutch disc (See CLUTCH UNIT REMOVAL/INSTALLATION .) (See CLUTCH DISC INSPECTION .)
10	Pilot bearing (See CLUTCH UNIT REMOVAL/INSTALLATION .) (See PILOT BEARING INSPECTION .)
11	Flywheel (See CLUTCH UNIT REMOVAL/INSTALLATION .) (See FLYWHEEL INSPECTION .)
