Clutch Release Cylinder Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not allow clutch fluid to get on a painted surface. Clutch fluid contains properties which can dissolve the paint. If clutch fluid gets on a painted surface, wash it off with water immediately and wipe the area off completely.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Disconnect the clutch pipe No. 2 from clutch release cylinder, and plug it to avoid clutch fluid leakage. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
Remove the clutch release cylinder.

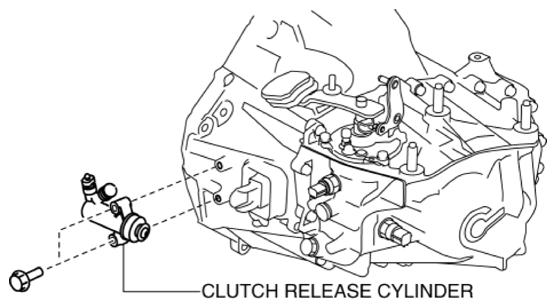

Fig 1: Removing Clutch Release Cylinder
Courtesy of MAZDA MOTORS CORP.
Install the clutch release cylinder.

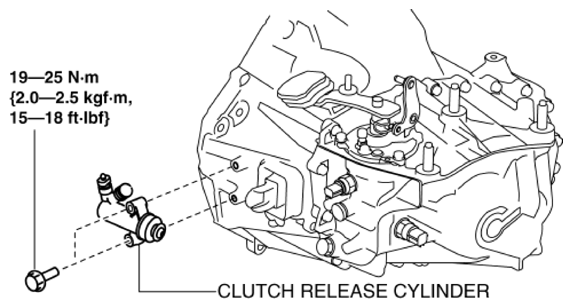

Fig 2: Identifying Clutch Release Cylinder Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Connect the clutch pipe No. 2 to clutch release cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Bleed the air from the clutch system. (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING .)
