Clutch Fluid Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

A common reserve tank is used for the clutch system and brake system.

Verify that the clutch fluid is between the MIN mark and the MAX mark.

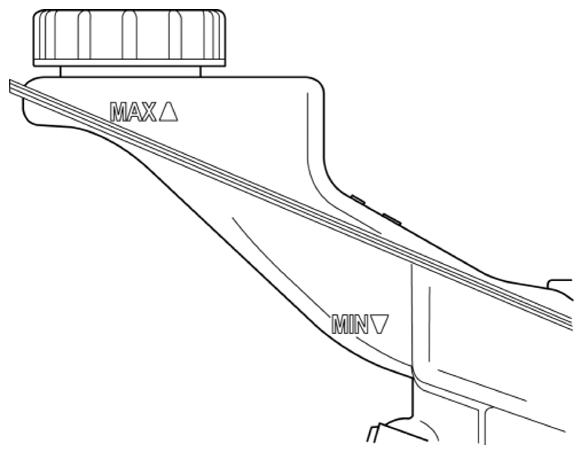

Fig 1: Identifying Clutch Fluid MIN And MAX Marks
Courtesy of MAZDA MOTORS CORP.
- If fluid level is lower than MIN mark, perform the following procedure.
  1. Verify that there is no fluid leakage. (See CLUTCH FLUID LEAKAGE INSPECTION .)
  2. Add fluid to the level between MIN mark and the MAX mark.
    Clutch fluid
- SAE J1703 or FMVSS116 DOT-3
