Locks And Openers

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

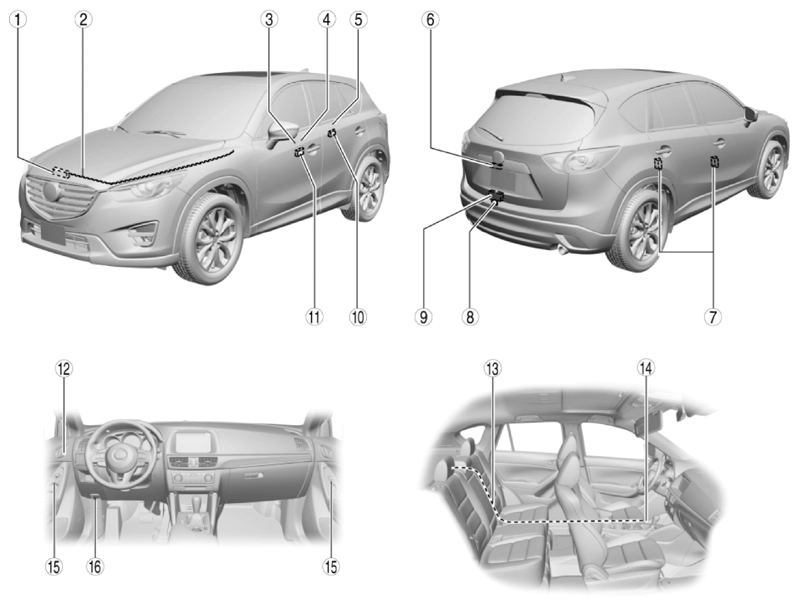

Fig 1: Vehicle Locks And Openers

G10938741

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Hood latch (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
2	Hood release cable (See HOOD RELEASE CABLE REMOVAL/INSTALLATION .)
3	Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
4	Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .) (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION .)
5	Rear outer handle (See REAR OUTER HANDLE REMOVAL/INSTALLATION .)
6	Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .) (See LIFTGATE OPENER SWITCH INSPECTION .)
7	Door lock striker (See DOOR LOCK STRIKER REMOVAL/INSTALLATION .)
8	Liftgate lock striker (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
9	Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION .) (See LIFTGATE LOCK ACTUATOR INSPECTION .) (See LIFTGATE LATCH SWITCH INSPECTION .)
10	Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION .) (See REAR DOOR LOCK ACTUATOR INSPECTION .) (See REAR DOOR LATCH SWITCH INSPECTION .) (See DOOR LOCK-LINK SWITCH INSPECTION .)
11	Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION .) (See FRONT DOOR LOCK ACTUATOR INSPECTION .) (See FRONT DOOR LATCH SWITCH INSPECTION .) (See DOOR LOCK-LINK SWITCH INSPECTION .)
12	Inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
13	Fuel-filler lid opener cable (See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION .)
14	Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
15	Door lock switch (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .) (See DOOR LOCK SWITCH INSPECTION .)
16	Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
