Rear Door Latch And Lock Actuator Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Remove the rear inner handle. (See INNER HANDLE REMOVAL/INSTALLATION .)
Remove service hole cover No. 1 in the direction of the arrow shown in the figure.
CAUTION:
- When removing service hole cover No. 1, remove it while gradually stripping the butyl rubber. Otherwise service hole cover No. 1 may be deformed.

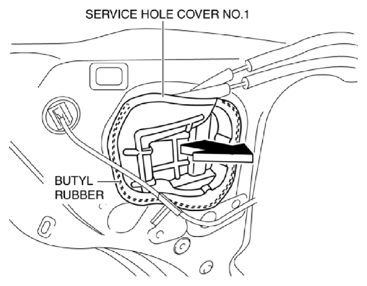

Fig 1: Removing Service Hole Cover
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

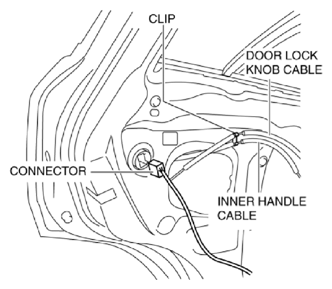

Fig 2: Identifying Door Lock Knob And Inner Handle Cables
Courtesy of MAZDA MOTORS CORP.
Remove the door lock knob cable and the inner handle cable from the clip.

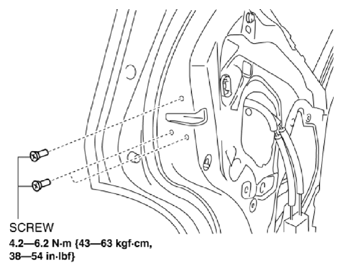

Remove the screws.

Fig 3: Removing Door Lock Knob And Inner Handle Cables From Clip
Courtesy of MAZDA MOTORS CORP.
Tilt the rear door latch and lock actuator in the direction of arrow (1) shown in the figure and lift it in the direction of arrow (2) to detach the hook of the rear door latch and lock actuator.

Fig 4: Detaching Rear Door Latch Hook And Lock Actuator
Courtesy of MAZDA MOTORS CORP.
Move the front door latch and lock actuator down in the direction of arrow (3) shown in the figure to remove the rod from the rod holder.

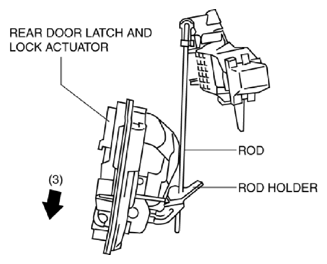

Fig 5: Removing Front Door Latch And Lock Actuator
Courtesy of MAZDA MOTORS CORP.
Remove the rear door latch and lock actuator.
Install in the reverse order of removal.
