Front Door Lock Actuator Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Perform the front door glass removal preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
- Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
- Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
- Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

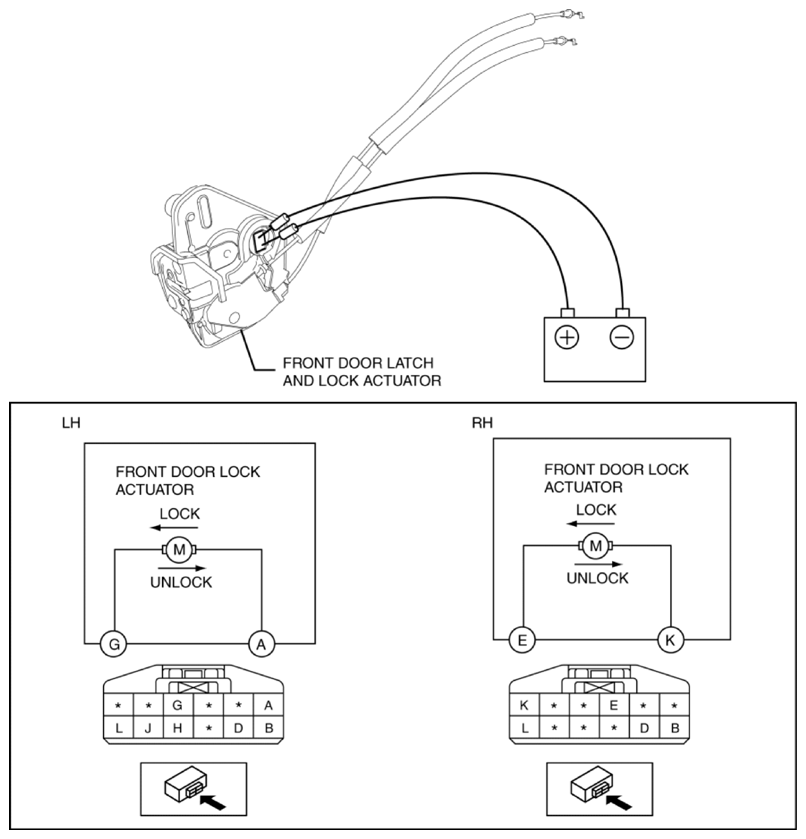

- Apply battery positive voltage and connect the ground to the front door lock actuator terminals as indicated in the chart below and verify the operation condition.
| FRONT DOOR LOCK ACTUATOR | B+ Terminal | Ground Terminal | Operation |
|---|---|---|---|
| LH | A | G | LOCK |
| G | A | UNLOCK | |
| RH | K | E | LOCK |
| E | K | UNLOCK |
- If not as indicated in the chart, replace the front door latch and lock actuator.
