Front Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Set plate (See SET PLATE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
    5. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
  3. Remove the bolts shown in the figure.

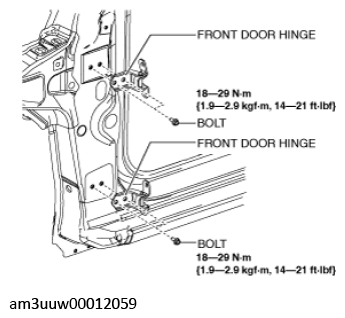

    Fig 1: Removing Bolt From Front Door Hinge
    G11447647Courtesy of MAZDA MOTORS CORP.
  4. Remove the front door hinge.
  5. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
  6. Adjust the front fog light aiming. (with front fog lights) (See FRONT FOG LIGHT AIMING .)
  7. Adjust the front door. (See DOOR ADJUSTMENT .)
