Rear Washer Hose D

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
Remove the following parts:
1. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
2. C-pillar trim (RH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
Partially peel back the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
Disconnect the rear washer hose C from the joint pipe E.

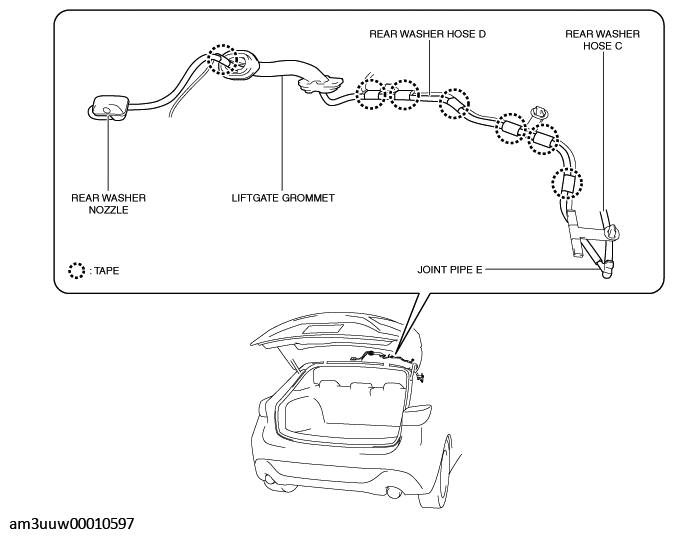

Fig 1: Rear Washer Hose C And Joint Pipe E
Courtesy of MAZDA MOTORS CORP.
Remove the tape.
Partially peel the liftgate grommet.

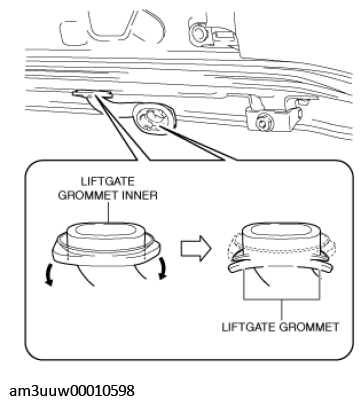

Fig 2: Removing Liftgate Grommet
Courtesy of MAZDA MOTORS CORP.

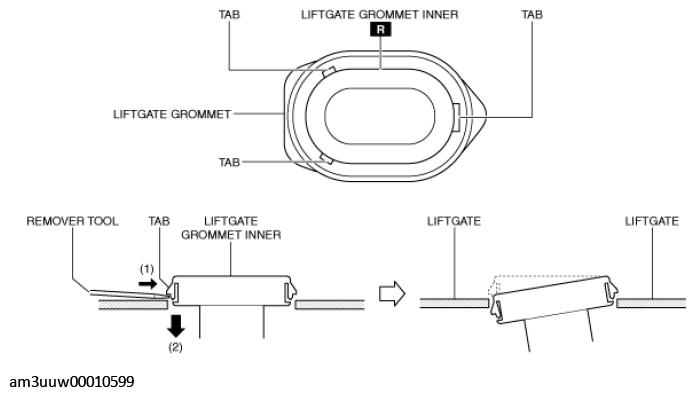

While pressing the tab of the liftgate grommet inner in the direction of the arrow (1) shown in the figure using the remover tool, pull the liftgate grommet inner in the direction of the arrow (2) shown in the figure to detach the tab of the liftgate grommet inner from the liftgate.

Fig 3: Removing Rear Washer Hose D From Rear Washer Nozzle
Courtesy of MAZDA MOTORS CORP.
Detach all the tabs of the liftgate grommet inner from the liftgate and remove the liftgate grommet inner.
Disconnect the rear washer hose D from the rear washer nozzle.

Fig 4: Rear Washer Hose D And Rear Washer Nozzle
Courtesy of MAZDA MOTORS CORP.
Disconnect the rear washer hose D from the joint pipe F.
Remove the rear washer hose D.
Install in the reverse order of removal.
