Rear Washer Hose B

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Disconnect the rear washer hose B from the joint pipe A.

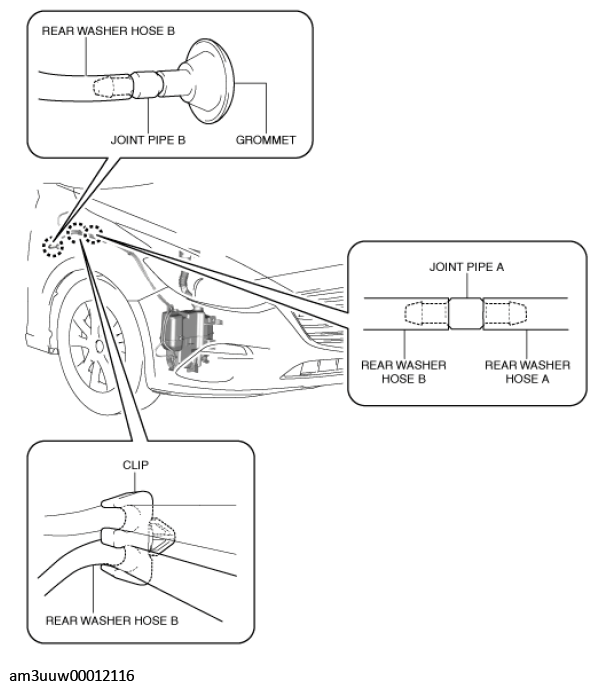

    Fig 1: Disconnecting Rear Washer Hose B From Joint Pipe A
    G11453040Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear washer hose B from the clip.
  4. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  5. Remove the following parts:
    1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    5. Bluetooth ® unit (without center display and with Bluetooth ® system) (See Bluetooth® UNIT REMOVAL/INSTALLATION .)
    6. Tuner and amp unit (with center display) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
    7. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
  6. Remove the grommet from the body.

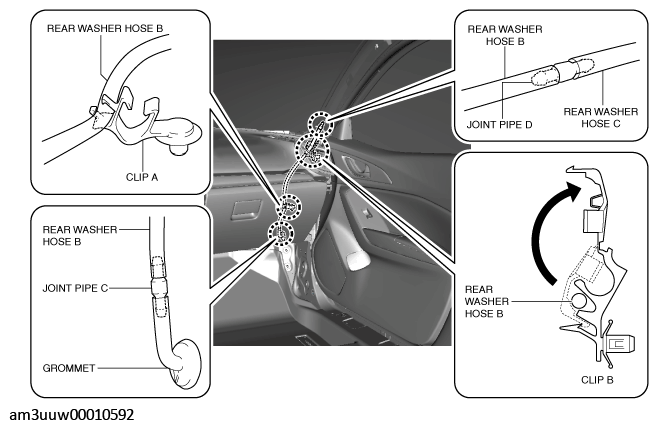

    Fig 2: Removing Rear Washer Hose B From Clip
    G11453041Courtesy of MAZDA MOTORS CORP.
  7. Remove the rear washer hose B from the clips A and B.
  8. Disconnect the rear washer hose C from the joint pipe D.
  9. Remove the rear washer hose B.
  10. Install in the reverse order of removal.
