Tuner And Amp Unit (Tau) Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the nuts.

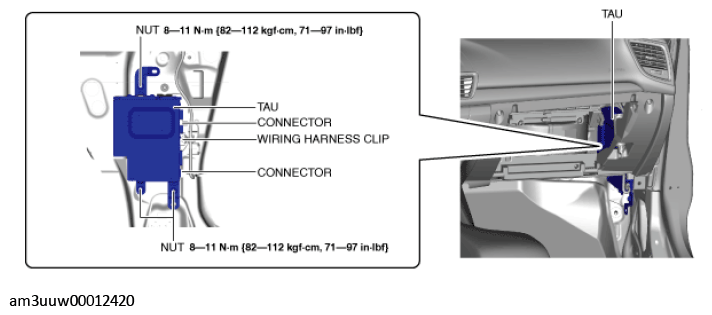

    Fig 1: Locating Nut On Tuner And AMP Unit
    G11448840Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connectors.
  5. Pull out the wiring harness clip.
  6. Remove the tuner and amp unit (TAU).
  7. Remove the clip.

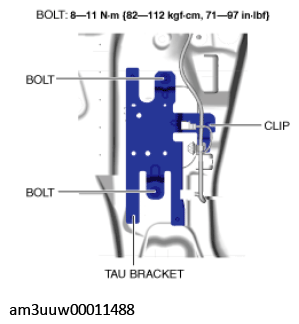

    Fig 2: Locating TAU Clip
    G11448841Courtesy of MAZDA MOTORS CORP.
  8. Remove the bolts.
  9. Remove the TAU bracket.
  10. Install in the reverse order of removal.
