Antenna Feeder No. 2 Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk end trim (RH) (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    5. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect antenna feeder No. 1.

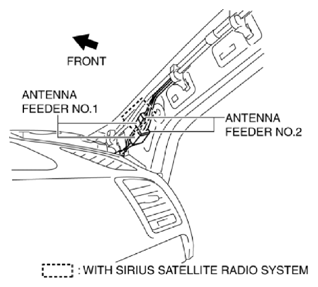

    Fig 1: Disconnecting Antenna Feeder No. 1
    G10939548Courtesy of MAZDA MOTORS CORP.
  4. Disconnect antenna feeder No. 3.

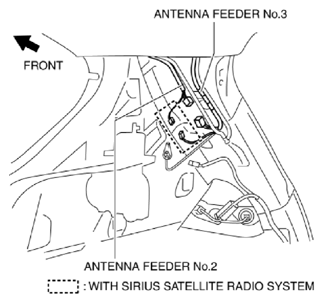

    Fig 2: Disconnecting Antenna Feeder No. 3
    G10939549Courtesy of MAZDA MOTORS CORP.
  5. Verify that the continuity between antenna feeder No. 2 terminals is as indicated in the table.

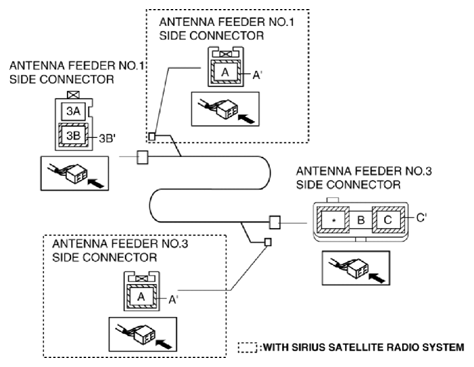

    Fig 3: Checking Continuity Between Antenna Feeder No. 2 Terminals
    G10939550Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace antenna feeder No. 2.

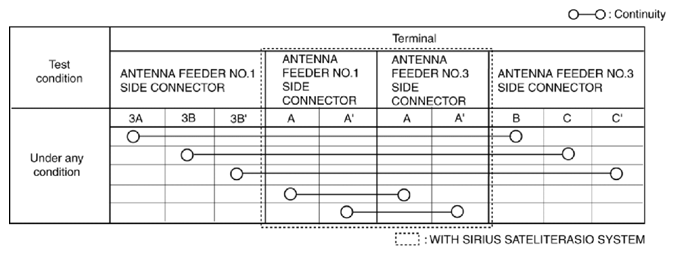

    Fig 4: Antenna Feeder No. 2 Terminals Continuity Chart
    G10939551Courtesy of MAZDA MOTORS CORP.
