Antenna Feeder No. 1 Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Side speaker grille (RH) (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
2. Tweeter (RH) (See TWEETER REMOVAL/INSTALLATION .)
3. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
4. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
5. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
6. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
7. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
8. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
9. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
10. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
11. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
Remove clips A, B, C, D, E, F, and G.

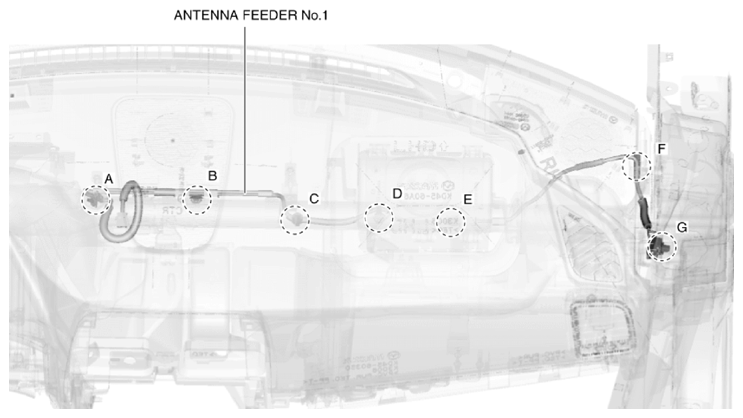

Fig 1: Removing Antenna Feeder No. 1 And Clips
Courtesy of MAZDA MOTORS CORP.
Remove antenna feeder No. 1.
Install in the reverse order of removal.
