Rear Seat Back Striker Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Fold the rear seat back.
  3. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    6. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    7. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    8. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    9. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    10. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  4. Remove bolt A.

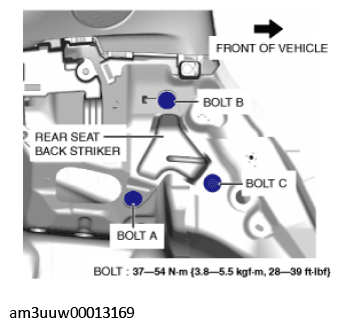

    Fig 1: Rear Seat Back Striker Location
    G11467568Courtesy of MAZDA MOTORS CORP.
  5. Remove bolt B.
  6. Remove bolt C.
  7. Remove the rear seat back striker by pulling the rear seat back striker hook from the body panel.

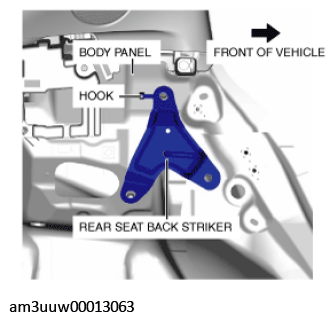

    Fig 2: Rear Seat Back Striker Location
    G11467569Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
