Front Bumper Slider

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)

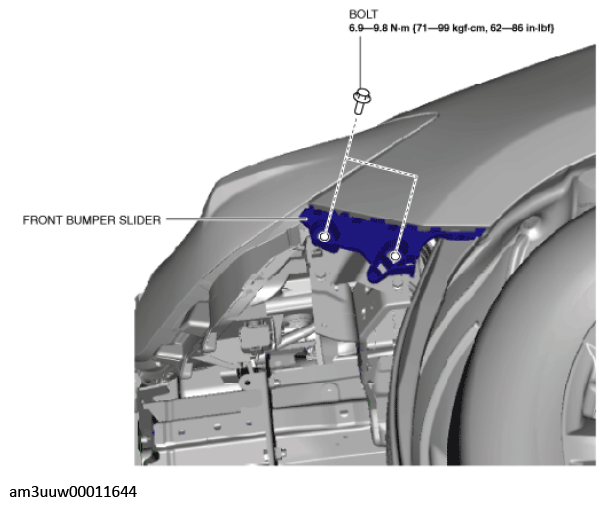

  4. Remove the bolts shown in the figure.
    Fig 1: Removing Bumper Slider Bolts
    G11447513Courtesy of MAZDA MOTORS CORP.

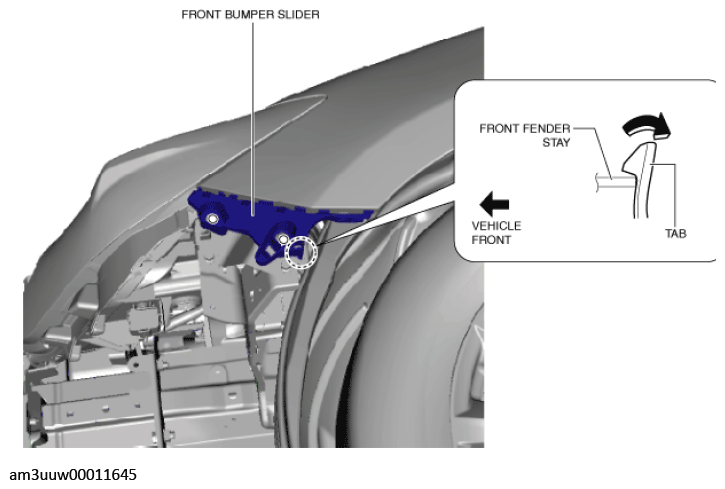

  5. Remove the tabs shown in the figure and detach the front fender panel from the front bumper slider.
    Fig 2: Removing Bumper Slider Tabs
    G11447514Courtesy of MAZDA MOTORS CORP.

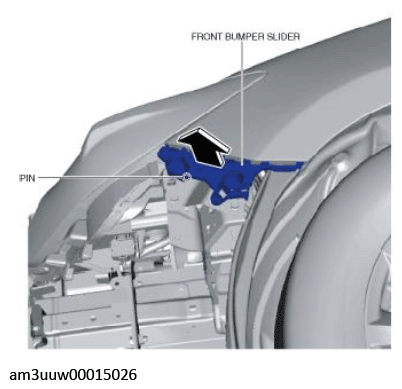

  6. Pull the front bumper slider in the direction of the arrow shown in the figure while detaching the pin.
    Fig 3: Pulling Front Bumper Slider
    G11447515Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. If a front fog light is removed from the front bumper, perform the front fog light aiming. (With front fog lights) (See FRONT FOG LIGHT AIMING .)
