Antenna Feeder No. 3 Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    5. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    6. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    7. Rear assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  3. Partially peel back the headliner.
    NOTE:
    • If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.
  4. Disconnect the connectors.

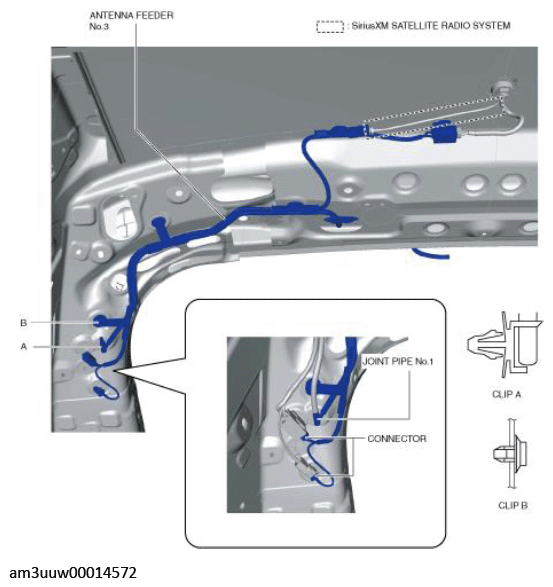

    Fig 1: Locating Connectors Of Antenna Feeder No. 3
    G11448728Courtesy of MAZDA MOTORS CORP.
  5. Detach clip A.
  6. Remove the joint pipe No. 1 clip B.
  7. Remove clips C, D and E.

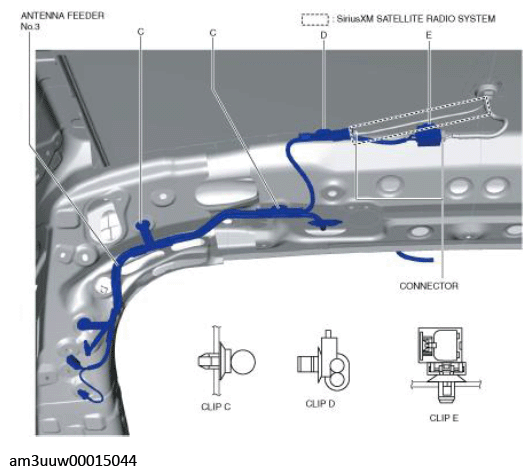

    Fig 2: Locating Clips On Antenna Feeder No. 3
    G11448729Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the connector.
  9. Remove the rear washer hose D. (See REAR WASHER HOSE REMOVAL/INSTALLATION .)
  10. Remove antenna feeder No. 3.
  11. Install in the reverse order of removal.
