Hatchback (5HB)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    3. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  4. Remove the trunk side upper trim. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
  5. Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  6. Disconnect antenna feeder No. 1.
    Fig 1: Disconnecting Antenna Feeder No. 1
    G11448710Courtesy of MAZDA MOTORS CORP.
  7. Disconnect antenna feeder No. 3.
    Fig 2: Disconnecting Antenna Feeder No. 3
    G11448715Courtesy of MAZDA MOTORS CORP.
  8. Verify that the continuity between antenna feeder No. 2 terminals is as indicated in the table.
    NOTE:
    • There are two types, a type A connector and type B connector, depending on the vehicle's period of manufacture.

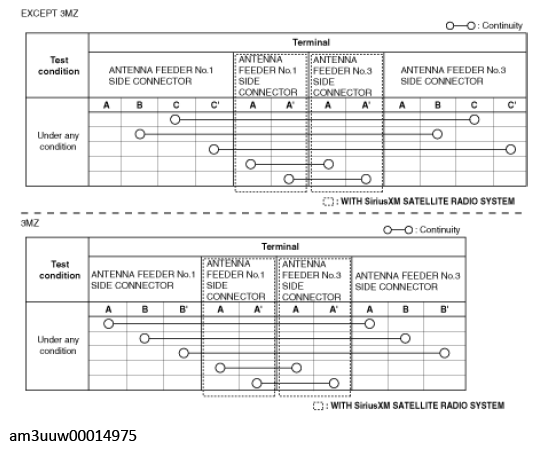

    Fig 3: Antenna Feeder No. 2 Terminals Continuity Chart
    G11448716Courtesy of MAZDA MOTORS CORP.

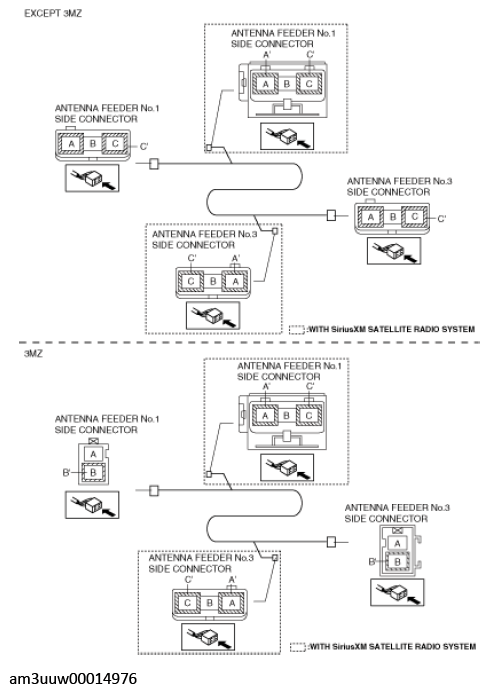

    Fig 4: Checking Continuity Between Antenna Feeder No. 2 Terminals
    G11448717Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace antenna feeder No. 2.
