Front Seat Belt Without Lap Pre-tensioner Seat Belt: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Switch the ignition off.
- Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)

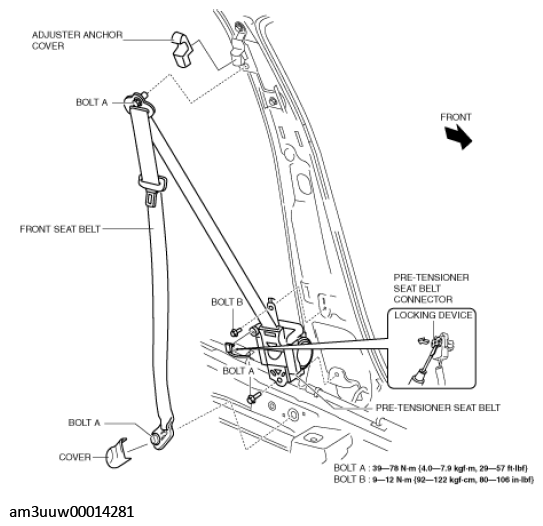

- Remove the adjuster anchor cover. (See ADJUSTER ANCHOR COVER REMOVAL NOTE .)
- Using a flathead screwdriver, lift the locking device carefully, however do not remove it.
- Disconnect the pre-tensioner seat belt connector.
- Remove the cover.
- Remove bolt A.
- Remove bolt B.
- Remove the pre-tensioner seat belt.
- Remove the front seat belt.
- Install in the reverse order of removal.
- Switch the ignition ON (engine off or on).
- Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
- If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)] .)
