Locks and Openers

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

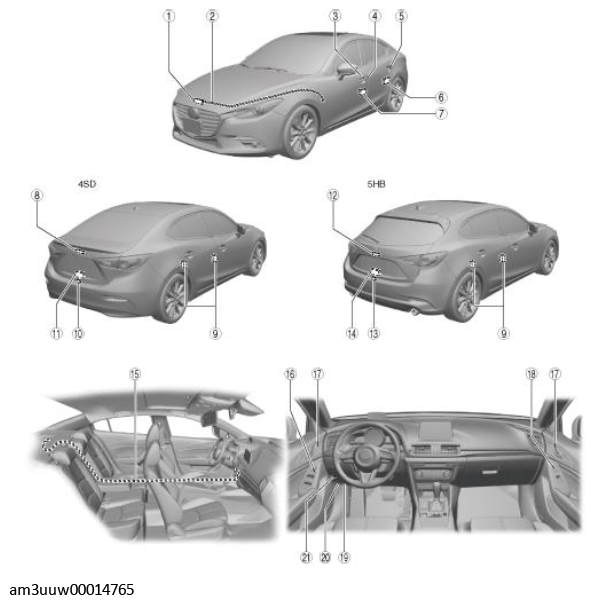

Fig 1: Security And Locks Component Location - Locks And Openers

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Hood latch (See HOOD LATCH REMOVAL/INSTALLATION .)
2	Hood release cable (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
3	Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
4	Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .) (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION .)
5	Rear outer handle (See REAR OUTER HANDLE REMOVAL/INSTALLATION .)
6	Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION .) (See REAR DOOR LOCK ACTUATOR INSPECTION .) (See REAR DOOR LATCH SWITCH INSPECTION .) (See REAR DOOR LOCK-LINK SWITCH INSPECTION .)
7	Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION .) (See FRONT DOOR LOCK ACTUATOR INSPECTION .) (See FRONT DOOR LATCH SWITCH INSPECTION .) (See FRONT DOOR LOCK-LINK SWITCH INSPECTION .)
8	Trunk lid opener switch (exterior) (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION .) (See TRUNK LID OPENER SWITCH INSPECTION .)
9	Door lock striker (See DOOR LOCK STRIKER REMOVAL/INSTALLATION .)
10	Trunk lid striker (See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION .)
11	Trunk lid latch and release actuator (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION .) (See TRUNK LID LATCH AND RELEASE ACTUATOR INSPECTION .) (See TRUNK LID RELEASE ACTUATOR INSPECTION .) (See TRUNK LID LATCH SWITCH INSPECTION .)
12	Lift gate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .) (See LIFTGATE OPENER SWITCH INSPECTION .)
13	Lift gate lock striker (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
14	Lift gate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION .) (See LIFTGATE LOCK ACTUATOR INSPECTION .) (See LIFTGATE LATCH SWITCH INSPECTION .)
15	Fuel- filler lid opener cable (See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION .)
16	Door lock switch (driver's side) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .) (See DOOR LOCK SWITCH INSPECTION .)
17	Inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
18	Door lock switch (passenger's side) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .) (See DOOR LOCK SWITCH INSPECTION .)
19	Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
20	Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
21	Trunk lid opener switch (interior) (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION .) (See TRUNK LID OPENER SWITCH INSPECTION .)
