Trunk Lid Latch And Release Actuator Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
  3. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

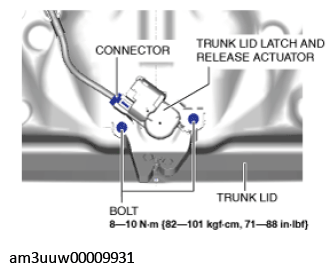

    Fig 1: Trunk Lid Latch And Release Actuator Bolt Location
    G11467836Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
  6. Remove the trunk lid latch and release actuator from the trunk lid.
  7. Install in the reverse order of removal.
