Liftgate Latch And Lock Actuator Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    3. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    4. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

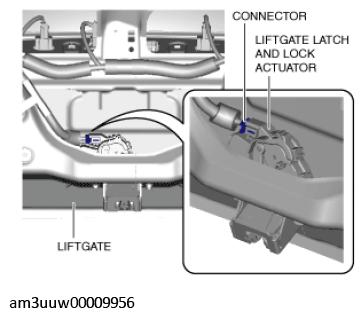

    Fig 1: Liftgate Latch And Lock Actuator Connector Location
    G11467755Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.

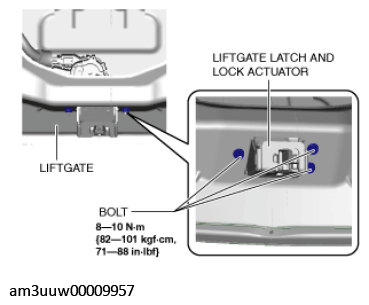

    Fig 2: Liftgate Latch And Lock Actuator Bolt Location
    G11467756Courtesy of MAZDA MOTORS CORP.
  5. Remove the liftgate latch and lock actuator from the liftgate.

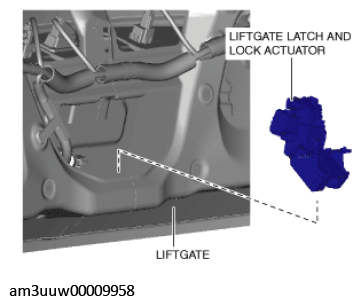

    Fig 3: Removing Liftgate Latch And Lock Actuator From Liftgate
    G11467757Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
