Trunk Lid Release Actuator Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION .)
  3. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  4. Remove the trunk lid latch and release actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION .)
  5. Press in the latch lever of the trunk lid latch and release actuator using a flathead screwdriver, and set it to the latched condition.

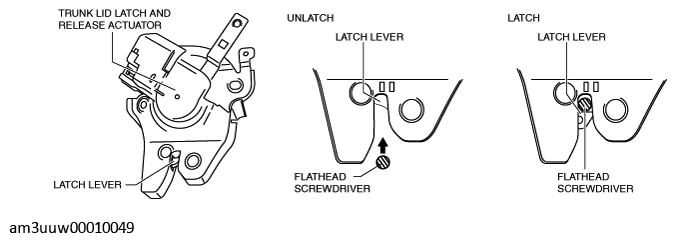

    Fig 1: Pressing Latch Lever Of Trunk Lid Latch
    G11467851Courtesy of MAZDA MOTORS CORP.
  6. Connect terminal A to the positive battery voltage, connect terminal B to the ground, and verify that the latch lever is released and the condition changes to the unlatch condition.

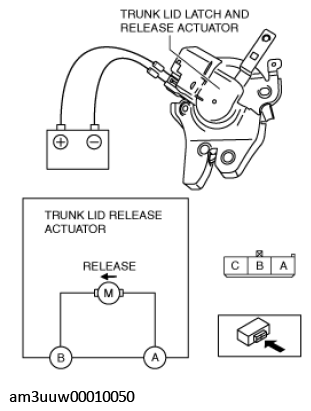

    Fig 2: Connecting Terminal A To Positive Battery Voltage And B To Ground
    G11467852Courtesy of MAZDA MOTORS CORP.
    • If the operation cannot be verified, replace the trunk lid latch and release actuator.
